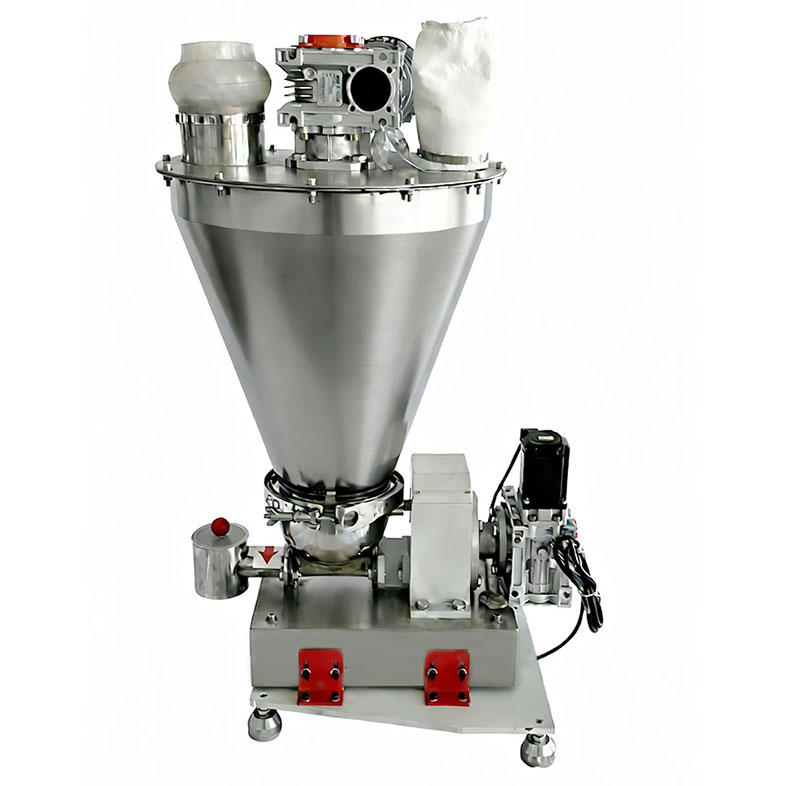

Working principle: It adopts the traditional single screw conveying method, transporting materials through the screw rotation force; the single screw feeder is installed on the scale platform, featuring good interchangeability; the scale platform is made of stainless steel, with a sealed cover for the sensor to prevent materials from entering and affecting the weighing accuracy.
Core features: Simple structure, easy to clean, stable and reliable operation, high measurement accuracy. The parts in contact with the materials are all made of stainless steel, meeting the requirements of clean production.
Technical Specifications:
|
Model
|
Feed quantity
|
Compatible materials
|
Slat hopper specifications
|
Symmetrical hopper specifications
|
|
HD-SZC25
|
0.5-5kg/h
|
Granular materials, powders with good fluidity
|
25L/40L
|
25L/40L
|
|
HD-SZC45
|
5-200kg/h
|
Granular materials, powders with good fluidity
|
40L/80L
|
40L/80L
|
|
HD-SZC80
|
50-500kg/h
|
Granular materials, powders with good fluidity
|
80L/120L/150L
|
80L/120L/150L
|
|
HD-SZC100
|
300-1000kg/h
|
Granular materials, powders with good fluidity
|
120L/150L/200L
|
120L/150L/200L
|
