Pneumatic Mixing Equipment
The pneumatic mixing equipment is a patented product of our company. It can integrate conveying functions, sucking the materials that need to be mixed into the mixing chamber, and also pressurizing the mixed materials to deliver them to the designated location.
The feeding and discharging forms of the pneumatic mixing equipment are diverse, capable of meeting various production processes.

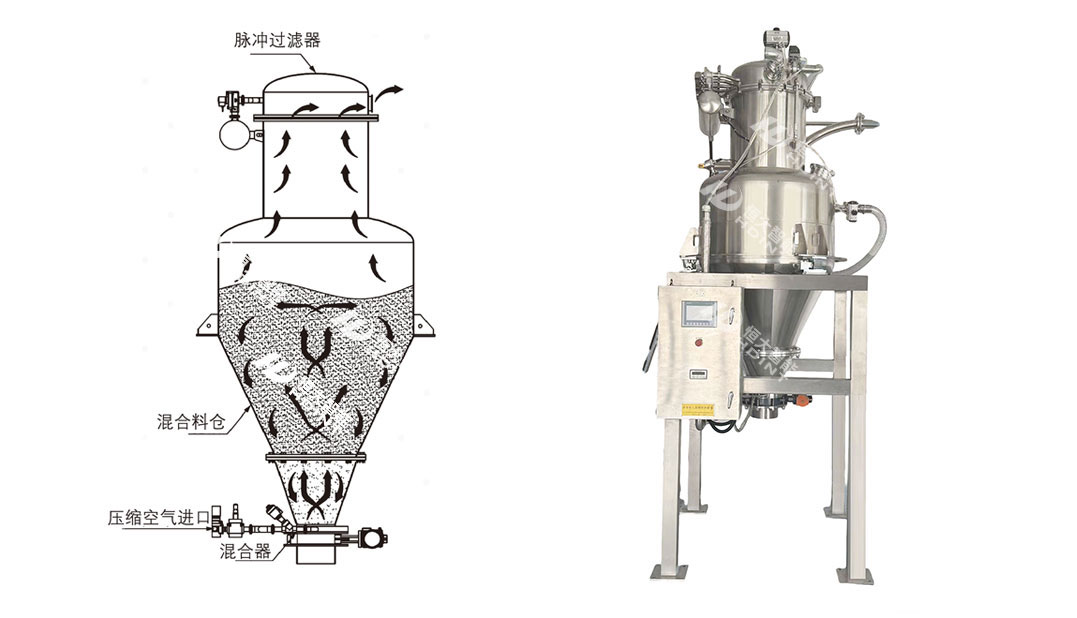

After the materials enter the mixing chamber, initially, compressed air pulses cause the volume of the materials to expand and their fluidity to improve. The materials have a certain trend of fluidization. Then, the materials in the center of the storage chamber pulsate upward, the materials around pulsate downward, the top materials spread outward from the center, and the bottom materials move from the periphery to the center, achieving a material pulsation cycle, thereby ensuring thorough mixing of the materials. Characteristics
Mixing time: 5 - 12 minutes
High degree of uniformity in mixing, CV value ≤ 2.5 - 5%;
Minimum mixing ratio: 1:5000
Filling coefficient: 10 - 95%;
Little particle damage;
The mixing chamber can also serve as the delivery tank for positive pressure dense-phase conveying, that is, the mixed materials can be directly discharged by pneumatic conveying;
No mechanical moving parts, high reliability, no foreign objects
Low energy consumption, high efficiency, small installation space, easy to install and clean/maintain
For materials with unstable chemical properties, inert gas mixing and conveying can be used;
Overall made of 304 stainless steel, without dead corners
Complies with GMP requirements
Can be CIP cleaned
