Technical parameters of the fully automatic weighing, packaging and stacking production line:
1. Weighing range: 20 - 50 kilograms per package;
2. Weighing accuracy: ≤ ± 0.2%;
3. Production capacity: 800 - 1200 packages per hour;
4. Power supply: 380VAC/220VAC 50HZ, +10%;
5. Control power supply: 24VDC;
6. Control air supply: 0.5 - 0.8 MPa;
7. Customization can be done according to on-site requirements. According to the production site and production requirements, the flow direction and length of the line body can be designed.

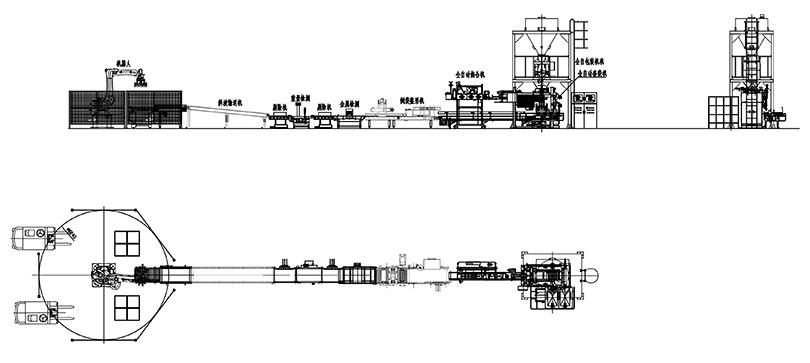

Components of the fully automatic weighing, packaging and stacking production line:
1. Automatic bag supply
2. Automatic weighing and packaging scale
3. Bag clamping device
4. Edge folding and heat sealing packaging machine
5. Bag reversing machine
6. Metal detection machine
7. Weight recheck machine
8. Conveyor and rejection machine
9. Inkjet printer
10. Tray storage and conveying equipment

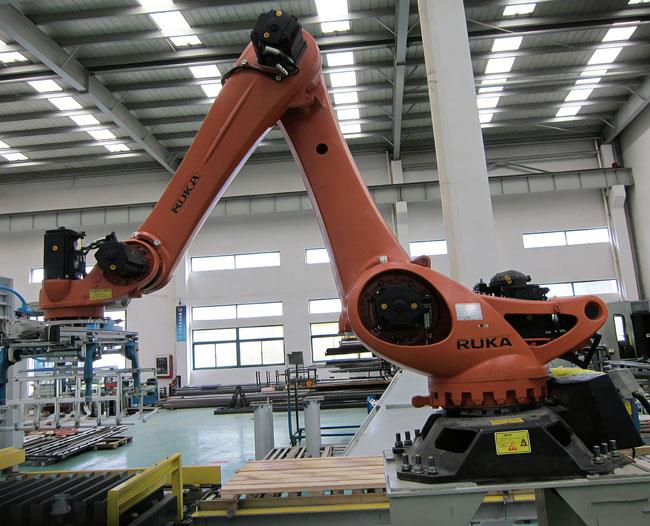

11. Automatic stacking machine (robotic stacking)
12. Other optional equipment
13. Electrical instrument control cabinet and various conveyors
